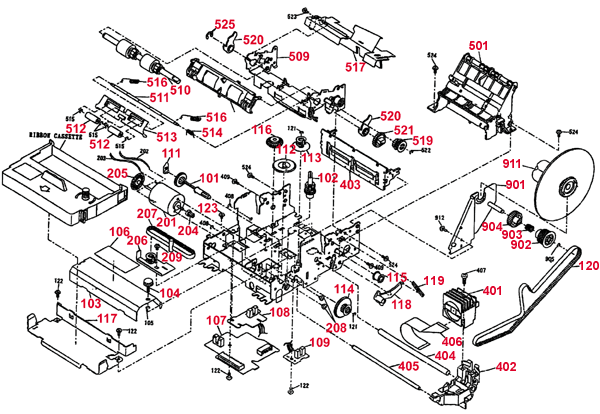

Parts_Epson_M_780
Ref. No. | CRS Item No. | Description | ||
---|---|---|---|---|
101 | 478001 | SHAFT, DRIVE ASSY B M-780 | ||
102 | 478002 | SHAFT, RIBBON DRIVE ASY M-780 | ||
111 | 478011 | DRIVE SHAFT HOLDER M-780 | ||
112 | 478012 | GEAR, CARRIAGE TRANS M-780 | ||
113 | 478013 | PULLEY, CARRIAGE DRIVE M-780 | ||
114 | 478014 | GEAR, PAPER FEED DRIVE M-780 | ||
116 | 478016 | GEAR, CARRIAGE REDUCTION M-780 | ||
118 | 478018 | ADJ PLATE BELT M-780 | ||
204 | 478022 | GEAR, MOTOR M-780 | ||
207 | 478025 | BELT, CARRIAGE DRIVE ASY M-780 | ||
406 | 478038 | FLEXIBLE FLAT CABLE HEAD M-780 | ||
510 | 478051 | SHAFT, PAPER FEED ASS'Y M-780 | ||
518 | 478059 | PLATE, PAPER EXIT M-780 | ||
519 | 478060 | GEAR, PAPER FEED TRANS M-780 |
