![](/Files/Images/BlowoutDiagrams/Parts_SPT_4845_4846_2.png)

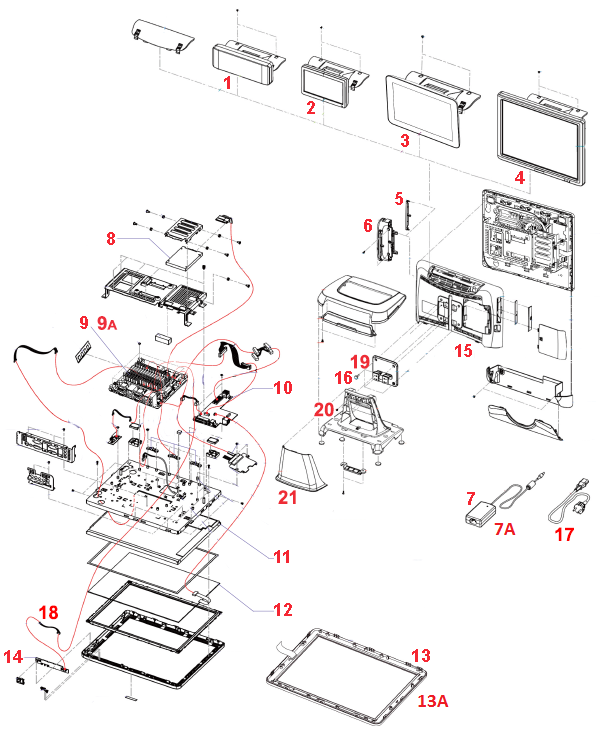

Parts_SPT_4845_4846_4856
Ref. No. | CRS Item No. | Description | ||
---|---|---|---|---|
1 | 503172 | Rear VFD SPT-48xx/SAP-4800 | ||
2 | 503169 | Rear 7 LCD Black SPT-48xx | ||
3 | 503168 | Rear 9.7 LCD Blk SPT-48xx | ||
4 | 503167 | Rear LCD 15 Blk SPT-48xx | ||
5 | 503166 | Cover, Blk MSR SAP/SPT-48xx | ||
6 | 503163 | MCR Black SPT-4845/SAP-48xx | ||
7 | 503112 | Power Supply 60w SPT-47/150/3K | ||
7A | 503082 | Power Supply 75w SPT-4700/40 | ||
8 | 703081 | 2.5 HDD 320GB SATA 5400RPM | ||
9 | 503179 | Logic Board Titan-1504740/4845/7540/160/4846/7640 | ||
9A | 503282 | Motherboard N3160 for Titan-360 SPT-4856 SPT-7650 | ||
10 | 503180 | Board, Touch SPT-4845 | ||
11 | 503145 | LCD Panel AUO | ||
13A | 503225 | Touch Panel PCT 15 in Blk | ||
14 | 503199 | Board, OSD SPT-4700 | ||
16 | 600914 | Screw (1) SPT-4500/4700 Base | ||
17 | 250014 | CORD POWER UL 6' | ||
18 | 503200 | Harness, OSD SPT-4700 | ||
19 | 503185 | Base Holder Hinge SAP/SPTSPT-4500/4700/4845/4740/SAP | ||
20 | 503186 | Screw for Hinge SAP/SPT** For use with 503185 ** | ||
21 | 503183 | Cover, Stand SPT-4xxx No Logo | ||
503185 | Base Holder Hinge SAP/SPTSPT-4500/4700/4845/4740/SAP | |||
503296 | Cable, Serial RJ45-DB9M SAM4s | |||
Replacement Battery | 203070 | BATTERY 3V LITHUM CR2032 |
This diagram applies to the following products:
- Sam4s Terminal SPT-4845 (730064)
- Term SPT-4845 NCC Ref (730076-SHOW)
- Terminal SPT-4845 NCC Ref Win (730077-A)
- Terminal SPT-4845 NCC Ref Win (730077-SHOW)
- Sam4s SPT-4846 Integrated Touch terminal Series (730123-Parent)
- Sam4s SPT-4856 Integrated Touch Terminal (730222-Parent)
- Sam4s SPT-4856 Terminal for NCC Embedded (730226-Parent)
- Sam4s SPT-4856 Terminal for NCC Windows (730226-WIN-SSD-Parent)
- Terminal SPT-4845 Win 10 Pro (730185)
- Terminal SPT-4845 Win 10 Ent (730184)
- Terminal SPT-4846 with No HDD and No O/S (730123-SHOW)
- Terminal SPT-4845 Win 8.1 Ind (730066)
- Terminal SPT-4845 Win 8.1 Pro (730065)
- Terminal SPT-4845 Win7 (730062-SHOW)
- Terminal SPT-4845 Win7 (730062)
- Terminal SPT-4845 POSReady7 (730061-SHOW)
- Terminal SPT-4845 POSReady7 (730061)
- Sam4s Terminal SPT-4856 NCC Reflections POS Embedded (730226)
- Sam4s Terminal SPT-4856 NCC Reflections POS Windows with SSD (730226-WIN-SSD)
