Parts_Samsung_SRP_270_Cabinet
| Ref. No. | CRS Item No. | Description | ||
|---|---|---|---|---|
| 4 | 102077 | LABEL CONTROL GREY SRP270 | ||
| 7 | 501317 | PRINTER ASSY SRP270D W/SPOOL | ||
| 8 | 102082 | CASE, LOWER A&C GRAY SRP270 | ||
| 10 | 102093 | SPOOL ASSY SRP270 | ||
| 21 | 501312 | INTERFACE BRD PAR SRP350/270 | ||
| 22 | 501314 | INTERFACE BD USB SRP350/270 | ||
| 28 | 471000 | FPC CABLE SMP710N | ||

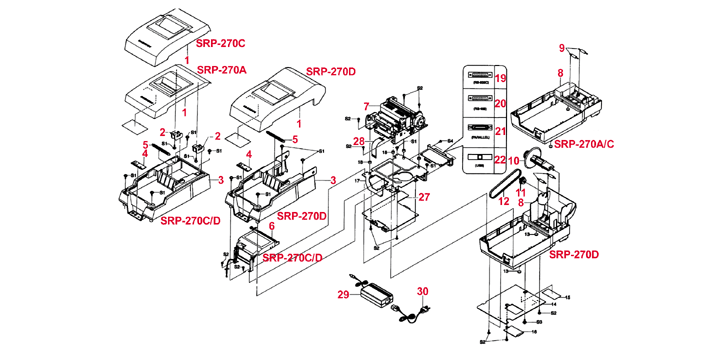

This diagram applies to the following products:
- PTR SRP270A SERIAL IVORY (100019)
- SRP270A BLUETOOTH IVORY (100019-BT)
- SAM SRP270A IVORY ETHERNET (100019-E)
- SAM SRP270A IVORY USB (100019-USB)
- PTR SRP270A PARALLEL IVORY (100020)
- PRINTER, SRP270 (100021)
- SRP270A SERIAL GRAY - CLASS A (100021-A)
- SRP270A SERIAL GRAY - CLASS B (100021-B)
- SRP270A BLUETOOTH GRAY (100021-BT)
- SAM SRP270A GRAY ETHERNET (100021-E)
- SAM SRP270A GRAY USB(SRP-270AGUSB) (100021-USB)
- Printer SRP270A PARALLEL GRAY(SRP-270APG) (100022)
- PRINTER, SRP270C A/C, SERIAL IVORY (SRP-270C) (100023)
- SRP270C BLUETOOTH IVORY (100023-BT)
- SAM SRP270C IVORY ETHERNET (100023-E)
- SAM SRP270C A/C IVORY USB (100023-USB)
- PTR SRP270C A/C, PAR IVORY(SRP-270CP) (100024)
- PTR SRP270C SERIAL GRAY(SRP-270CG) (100025)
- SRP270C BLUETOOTH GRAY (100025-BT)
- SRP270C SERIAL GRAY CHINESE (100025-CH)
- SAM SRP270C GRAY ETHERNET(SRP-270CGE) (100025-E)
- PTR SRP270C A/C GRAY USB(SRP-270CGUSB) (100025-USB)
- PTR SRP270C PARALLEL GRAY(SRP-270CPG) (100026)
- PTR SRP270D A/C,TA/UP, SER IVO (100027)
- SRP270D BLUETOOTH IVORY (100027-BT)
- SAM SRP270D IVORY ETHERNET (100027-E)
- SAM SRP270D A/C TA/UP IVRY USB (100027-USB)
- SAM SRP270D A/C,TA/UP, PAR IVR (100028)
- PTR SRP270D A/C,TA/UP,SER GRAY (100029)
- SRP270D BLUETOOTH GRAY (100029-BT)
- SAM SRP270D GRAY ETHERNET (100029-E)
- SAM SRP270D A/C,TA/UP GRAY USB (100029-USB)
- SAM SRP270D A/C,TA/UP,PAR GRAY (100030)
