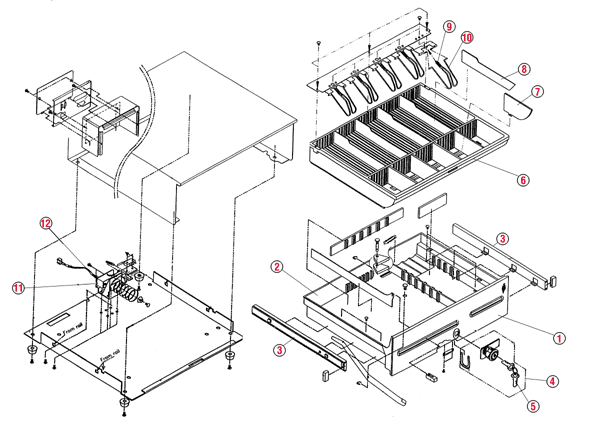

![](/Files/Images/BlowoutDiagrams/Parts_CD_Model_93.png)
Parts_CD_Model_93
Ref. No. | CRS Item No. | Description | ||
---|---|---|---|---|
3 | 100550 | SLIDE RAIL SET FOR 83/93 | ||
4 | 100603 | LOCK ASSY MDL 23/31/41/93/93-W | ||
5 | 100549 | KEYS 2 MDL 93/23/6/41/23 #235 | ||
6 | 100213 | INSERT TRAY MODEL 83/93 | ||
7 | 100558 | COIN SEPARATOR FOR 83/93 | ||
8 | 100557 | BILL SEPARATOR FOR 83/93 | ||
9 | 100556 | SPRING FOR LEVER 83/93 | ||
10 | 100555 | BILL LEVER FOR 83/93 | ||
11 | 100553 | SOLENOID ONLY 24V FOR 83/93 | ||
12 | 100614 | SOLENOID ASSY 12V MDL 23/83/93 | ||
Not pictured | 100633 | Solenoid Assembly 12/24V for 93-Wide - New Style | ||
not pictured | 100613 | Solenoid Assembly 24V - Models 23/83/93 Drawers | ||
100612 | RUBBER FEET EC460B | |||
100632 | Connector Assembly, for Model 93-W |
This diagram applies to the following products:
- DRAWER MODEL 93 ECR BLACK 24V (160093-ECR)
- MODEL 93 CASH DRAWER-NEC5K (160093-N5K)
- Drawer Model 93 24V (160093-SHOW)
- Drawer Model 93-Wide POS Black 12V/24V - Class A (160093-W-A)
- Drawer Model 93-W Blk 12v/24v (160093-W-SHOW)
- CRS Model 93-Wide POS Cash Drawer - 12 and 24V (160093-W-Parent)
- Drawer Model 93 POS Black 24V (160093)
- Drawer Model 93-Wide POS Black 12V/24V (160093-W)
