![](/Files/Images/BlowoutDiagrams/Parts_CD_Model_88_98.png)

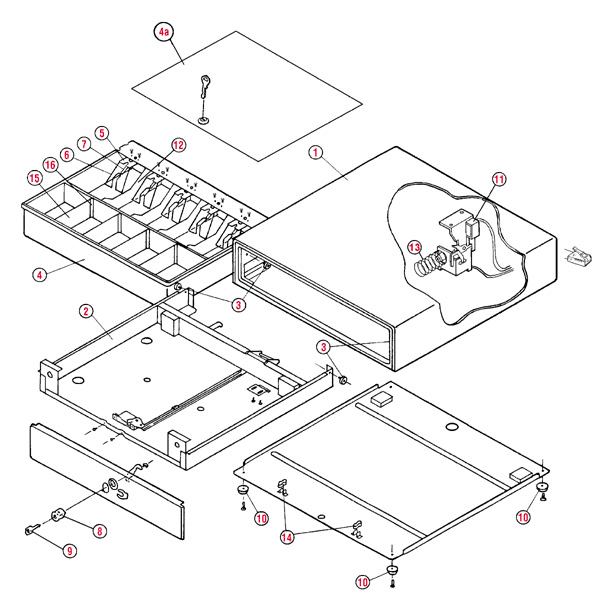

Parts_CD_Model_88_98
Ref. No. | CRS Item No. | Description | ||
---|---|---|---|---|
3 | 100263 | DRAWER ROLLER M58 D19MM S2.5MM | ||
4 | 100114 | INSERT PLASTIC 58/61/68/88 | ||
4a | 100115 | LID METAL FOR PLASTIC MODEL 58 | ||
5 | 100532 | WEIGHT HOLDER | ||
6 | 100542 | BILL WEIGHT (BLK) PLASTIC | ||
7 | 100534 | SPRING-LEVER PRESS:SUS-WHP10.3 | ||
8 | 300417 | LOCK ASSY 68,81,82,88 #216 | ||
13 | 100709 | SPRING-BIG FOR DRAWER | ||
14 | 100536 | RUBBER STOPPER MODEL 53 BASE |
This diagram applies to the following products:
