![](/Files/Images/BlowoutDiagrams/Parts_SPT_4700.png)

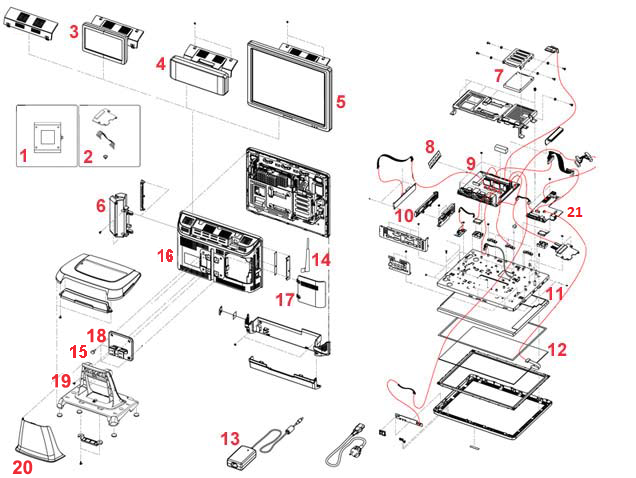

Parts_SPT_4700
Ref. No. | CRS Item No. | Description | ||
---|---|---|---|---|
1 | 522018 | VESA Wall Mount Bracket Fixed | ||
4 | 503050 | VFD Display for SPT-4500/47xx | ||
6A | 110756 | MCR+FP 123 SPMT15 SPT4500/4700 | ||
7 | 703081 | 2.5 HDD 320GB SATA 5400RPM | ||
8 | 705069 | Memory SODIMM DDR3 2GB | ||
9 | 503083 | Logic Board SPT-4700/7000 | ||
10 | 503086 | Inverter SPT-4700 | ||
11 | 503145 | LCD Panel AUO also need cable 503272 | ||
12 | 503085 | Touch Panel SPT-47xx/7000 | ||
13 | 503112 | Power Supply 60w SPT-47/150/3K | ||
13A | 503082 | Power Supply 75w SPT-4700/40 | ||
14 | 503073 | SPT WIFI USB Adaptor | ||
15 | 600914 | Screw (1) SPT-4500/4700 Base | ||
16 | 503193 | Cover, Rear | ||
17 | 503227 | Cover, Rear HDD SPT-47xx | ||
18 | 503185 | Base Holder Hinge SAP/SPTSPT-4500/4700/4845/4740/SAP | ||
19 | 503186 | Screw for Hinge SAP/SPT** For use with 503185 ** | ||
20 | 503183 | Cover, Stand SPT-4xxx No Logo | ||
21 | 503113 | Board, Touch & Drawer SPT-4700 | ||
not pictured | 503272 | Harness, Inverter LED SPT-47xx | ||
503066 | Base Assy SPT-4500/4700 | |||
503114 | Cover, MSR SPT-4500/4700 | |||
503115 | Cover, SPT Finger Print Reader SPT-4500,4700,7000,7500 | |||
503122 | Cable, LVDS SPT-4700 | |||
503185 | Base Holder Hinge SAP/SPTSPT-4500/4700/4845/4740/SAP | |||
503186 | Screw for Hinge SAP/SPT** For use with 503185 ** | |||
503199 | Board, OSD SPT-4700 | |||
503200 | Harness, OSD SPT-4700 | |||
503202 | Bracket, HDD SPT-47xx | |||
503228 | Cover, Front Bezel SPT-47xx | |||
503229 | Cover, Rear Bottom SPT-47xx | |||
Replacement Battery | 203070 | BATTERY 3V LITHUM CR2032 |
This diagram applies to the following products:
- TERMINAL SPT-4700 POSREADY2009 (730050)
- Terminal SPT-4700 POSReady2009 (730050-SHOW)
- TERMINAL SPT-4700 XP PRO (730051)
- Terminal SPT-4700 XP Pro (730051-SHOW)
- TERMINAL SPT-4700 POSREADY7 (730052)
- Terminal SPT-4700 POSReady7* 1 Year Warranty Extension (730052-1YWE)
- SPT-4700 POSReady7 - Class A (730052-A)
- SPT-4700 POSReay7 - Class B (730052-B)
- Terminal SPT-4700 POSReady7 (730052-SHOW)
- TERMINAL SPT-4700 WIN7 (730053)
- Terminal SPT-4700 Win7 (730053-SHOW)
- Terminal SPT-4700 Win Pro 8.132 bit (730054-32BIT)
- Terminal SPT-4700 Win Pro 8.164 bit (730054-64BIT)
- Terminal SPT-4700 (730055)
- Terminal SPT-4700 NCC Reflect (730056)
- Terminal SPT-4700 NCC Reflect* 1 Year Warranty Extension (730056-1YWE)
- Terminal SPT-4700 NCC Ref2 Year NextDay Xchange (730056-2YNDX)
- Terminal SPT-4700 NCC Ref* 2 Year Warranty Extension (730056-2YWE)
- Terminal SPT-4700 NCC Reflect (730056-SHOW)
- TERMINAL SPT-4700 NCC REF WIN (730057)
- Terminal SPT-4700 NCC Ref Win4 Year NexDay Xchange Plus (730057-4YNDX)
- Terminal SPT-4700 NCC Ref Win (730057-SHOW)
- TERMINAL SPT-4700 Win Ind 8 .132 Bit (730058-32BIT)
- Terminal SPT-4700 Win Ind 8.164 bit (730058-64BIT)
