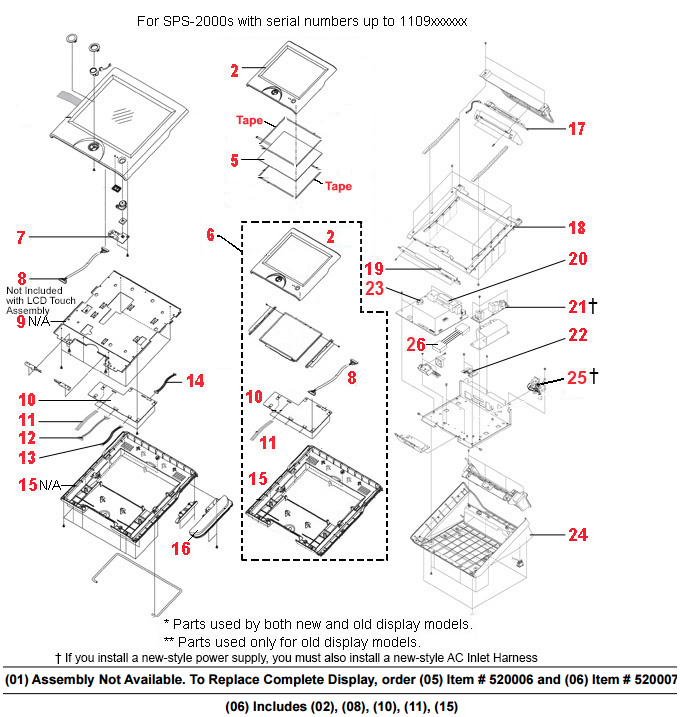

Parts_SPS_2000_Old
| Ref. No. | CRS Item No. | Description | ||
|---|---|---|---|---|
| 5* | 520006 | TOUCH PANEL SPS-2000 | ||
| 6** | 520007 | LCD TFT SPS-2000 | ||
| 7* | 520014 | BOARD LED BOARD - SPS-2000 | ||
| 10** | 520011 | BOARD MICOM SPS-2000 | ||
| 11** | 205224 | HARNESS INVERTER SPS-2000 | ||
| 12* | 205226 | HARNESS MICOM SPS-2000 | ||
| 13* | 205227 | HARNESS LED SPS-2000 | ||
| 14* | 205225 | HARNESS MCR (SET) SPS-2000 | ||
| 16* | 520009 | MCR ASSY - SPS-2000 | ||
| 17* | 520013 | BOARD REAR VFD-BOARD SPS-2000 | ||
| 18* | 102196 | CASE UPPER - SPS-2000 | ||
| 19* | 102198 | COVER, FRONT SPS-2000 | ||
| 20* | 520023 | MAIN BOARD V. 2.4 SPS-2000 | ||
| 22* | 520012 | BOARD SDCARD PCB SPS-2000 | ||
| 23* | 203085 | BATTERY ML2032 SPS-2000 3.0V | ||
| 24* | 102199 | CASE, LOWER D/GRAY SPS-2000 | ||
| 25* | 101420 | Cable P/S to MB SPS-2000 | ||
| 26 | 101420 | Cable, 5-Pin, Power supply to motherboard, SPS-2000 | ||
