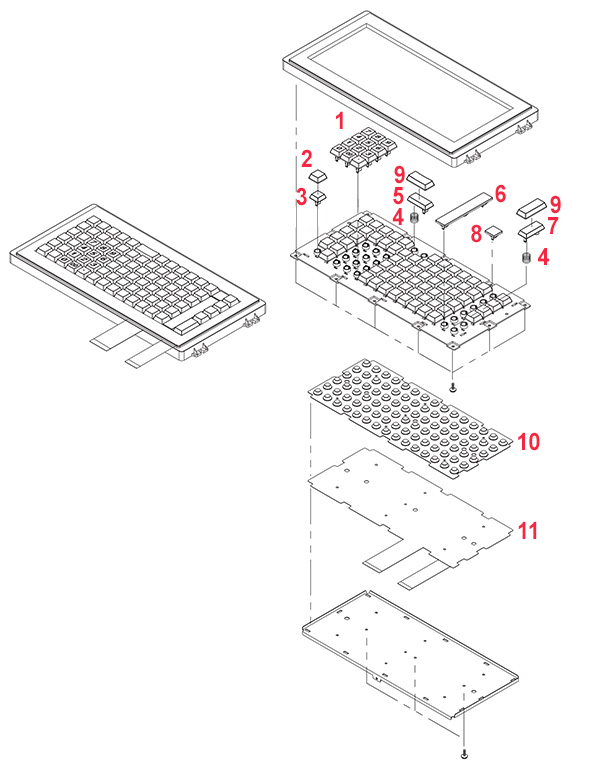

Parts_SPS_500_Raised_keyboard
| Ref. No. | CRS Item No. | Description | ||
|---|---|---|---|---|
| 1 | 300168 | Key Number Set N/S Black | ||
| 2 | 300152 | 1 X 1 Keycap N/S | ||
| 3 | 300153 | 1 X 1 KEYTOP N/S | ||
| 4 | 300154 | SPRING RETURN N/S | ||
| 5 | 300166 | 1 X 2 KEYTOP HORIZONTAL N/S BLACK | ||
| 6 | 300163 | 5 X 1 BLANK COVER N/S BLACK | ||
| 7 | 300164 | 1 X 2 KEYTOP VERT N/S - BLACK | ||
| 8 | 300165 | 1 X 1 BLANK COVER N/S BLACK | ||
| 9 | 300155 | 1 X 2 KEYCAP N/S | ||
This diagram applies to the following products:
