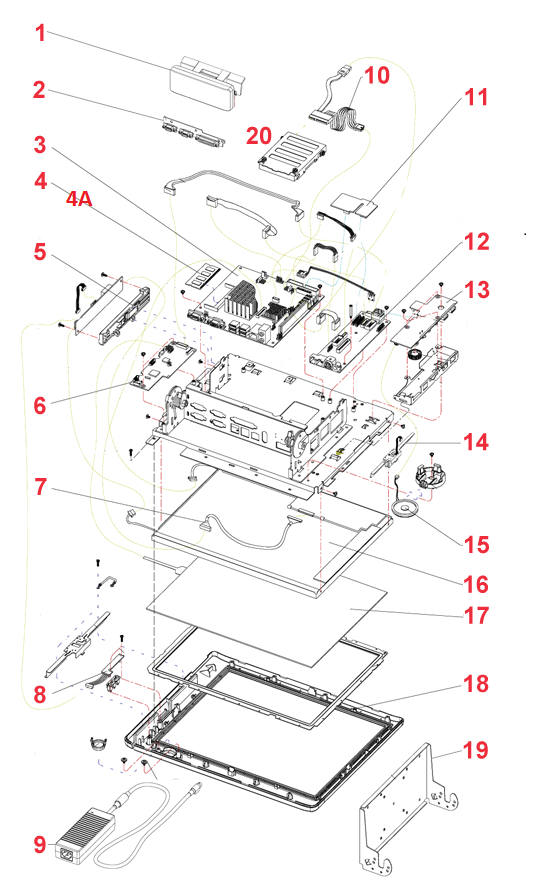

SPT-3000
| Ref. No. | CRS Item No. | Description | ||
|---|---|---|---|---|
| 3 | 503032 | Logic Board SPT-3000 | ||
| 4 | 705067 | Memory SODIMM DDR2 1GB SPT-3000 | ||
| 8 | 503040 | Board, LED SPT-3000 | ||
| 9 | 503082 | Power Supply 75w | ||
| 10 | 503118 | Cable Harness, SATA SPT-3000 | ||
| 13 | 503037 | Board, USB SPT-3000 | ||
| 14 | 503002 | MCR Trk 1 & 2 for SPT-3000 | ||
| 17 | 503028 | Touch Panel SPT-3k/4500 | ||
| 20 | 703081 | 2.5 HDD 320GB SATA 5400RPM | ||
| 503033 | WATER PROOF - SPT-3000 | |||
| 503034 | REAR CASE SPT-3000 | |||
| 503048 | BRACKET, HARD DRIVE SPT-3000 | |||
| 203087 | Battery Bios SPT-3000 | |||
| 503112 | Power Supply 60w SPT-47/150/3KSPT-4700/40/4845/3K/T-150 | |||
This Product is discontinued. Click on the Replacement Part to see if stock is available.
This diagram applies to the following products:
