![](/Files/Images/BlowoutDiagrams/Parts_LTPF_347_SPS_500.png)

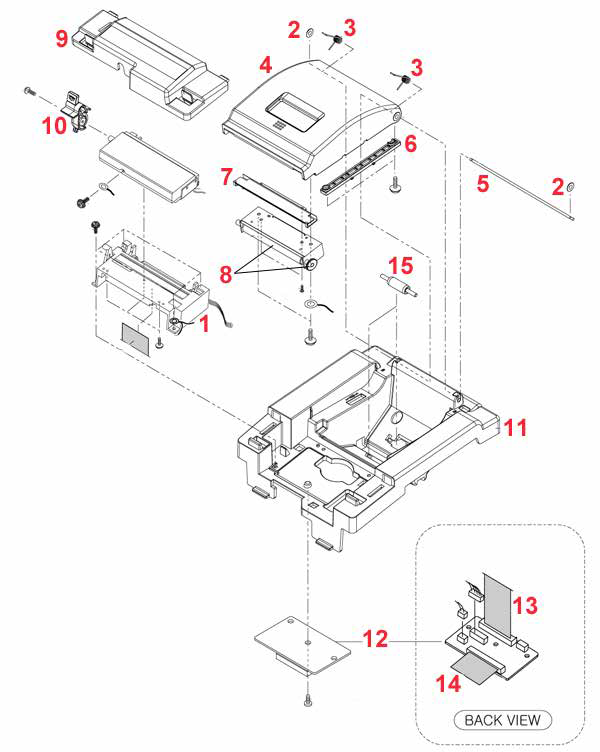

Parts_LTPF347_SPS_500
Ref. No. | CRS Item No. | Description | ||
---|---|---|---|---|
4 | 434002 | COVER, CLAM LTPF347E SPS-530 | ||
7 | 434004 | AUTO CUTTER ACUF324G SPS-530 | ||
8 | 434012 | PLATEN ROLLER ASSY LTPF347 | ||
9 | 434005 | COVER, FRONT LTPF347E SPS-530 | ||
11 | 434007 | PAPER SUPPLY HOLDER LTPF347E | ||
12 | 434008 | BOARD, JOINT SPS-530 | ||
13 | 434009 | CABLE FFC, TPH CABLE SPS-530 | ||
14 | 434010 | CABLE FFC PRTR SPS-530/350II | ||
LTPF347E Printer | 501711 | LTPF347E Printer |
This diagram applies to the following products:
