Parts_ER_940

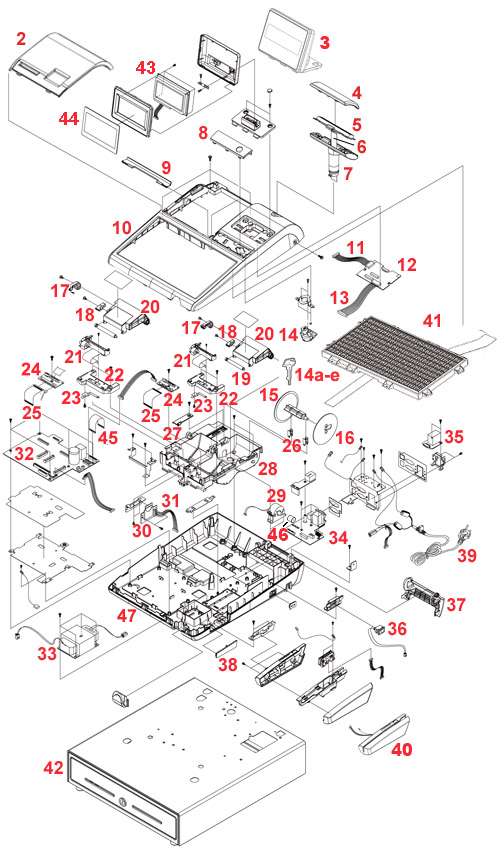

| Ref. No. | CRS Item No. | Description | ||
|---|---|---|---|---|
| 2 | 101460 | COVER, PRINTER SPS-340/ER-940 | ||
| 3 | 501760 | FRONT DISPLAY ASSY ER-900 | ||
| 4 | 101462 | TURRET, WINDOW ER-900 SPS-300 | ||
| 5 | 501761 | DISPLAY REAR ER-900 SPS-300 | ||
| 6 | 101463 | CABLE, FFC TURRET ER-900 SPS-3 | ||
| 7 | 101464 | TURRET BODY BOTTOM ER-900 SPS | ||
| 8 | 101465 | COVER, MODE ER-900 | ||
| 9 | 101467 | CAP, PRINTER ER-900 SPS-300 | ||
| 10 | 101468 | CASE, UPPER ER-900 SPS-300 | ||
| 11 | 101469 | HARNESS, MAIN TO LCD 18P | ||
| 12 | 101471 | BOARD, DISPLAY ER-900/SPS-300 | ||
| 13 | 101470 | HARNESS, MAIN TO LCD 22P | ||
| 14 | 101472 | MODE SWITCH ER-900 SPS-300 | ||
| 14a | 300561 | KEYS (2) C, SAMSUNG N/S (5L11112) | ||
| 14b | 300562 | KEYS (2) P, SAMSUNG N/S (5L11111) | ||
| 14c | 300563 | KEYS (2) MODE Z, N/S (5L11110) | ||
| 14d | 300564 | KEYS (2) VD, SAMSUNG N/S (5L11109) | ||
| 14e | 300578 | KEYS (2) (REG), N/S (5L11201) | ||
| 15 | 466009 | SPOOL WINDING LTPD245 | ||
| 16 | 101309 | GUIDE WINDING ER-5200,15,40 | ||
| 17 | 466001 | KNOB RELEASE LTPD245 | ||
| 18 | 466002 | LINK RELEASE LTPD245 | ||
| 19 | 466003 | ROLLER, PLATEN LTPD245 | ||
| 20 | 466004 | HOUSING CLAM LTPD245 | ||
| 21 | 466000 | PRINTER UNIT LTPD245 | ||
| 22 | 466005 | HOLDER, PRINTER LTPD245 | ||
| 23 | 466006 | PLATE GROUND HOLDER LTPD245 | ||
| 24 | 466007 | PBA SUB BOARD LTPD245 | ||
| 25 | 466015 | CABLE FFC 30P 90MM LTPD245 | ||
| 26 | 466010 | SPOOL LOCK LTPD245 | ||
| 27 | 103008 | COVER, SD SLOT SPS-5X0 | ||
| 29 | 466012 | TAKE UP MOTOR LTPD245 | ||
| 30 | 466013 | BOARD SD CARD SLOT ER-900/SPS3 | ||
| 31 | 466014 | HARNESS, SD CARD LTPD412 | ||
| 32 | 501766 | LOGIC BOARD ER-940 N/S - 16mb | ||
| 33 | 101473 | Transformer Power ER-900/SPS3 | ||
| 34 | 501769 | BOARD INTERFACE ER-920/40 | ||
| 35 | 501531 | RS232 OPTION BRD ER900/SPS-300 | ||
| 36 | 101474 | POWER SWITCH ER-900/SPS-300 | ||
| 37 | 101475 | DOOR, INTERFACE ER-900 SPS-300 | ||
| 38 | 101476 | DOOR, MSR ER-900 SPS-300 | ||
| 39 | 205268 | POWER CORD ER-265/285/900/300 | ||
| 40 | 501530 | MCR OPTION ER-900/SPS-300 | ||
| 41 | 501534 | KEYBOARD FLAT ER-900 | ||
| 42 | 160160 | Drawer Model 60 ECR Black 24V - for ECR's | ||
| 44 | 101477 | Window, Front SPS-300/ER-900 | ||
| 45 | 101478 | Cable FFC Interface Board, ER-900 | ||
| 46 | 100779 | DETAIL RUBBER-TAKE UP ROLL 200 | ||
| 47 | 101479 | Case, Lower ER-900 SPS-300 | ||
| 466015 | CABLE FFC 30P 90MM LTPD245 | |||
| 501763 | Not Illus. - PRINTER ASSY LTPD245 2-STATION | |||
| 101491 | Harness, Drawer+Power, ER-300/900 | |||
| 203085 | BATTERY ML2032 3.0V, SPS-2000/500/300, ER-900 | |||
