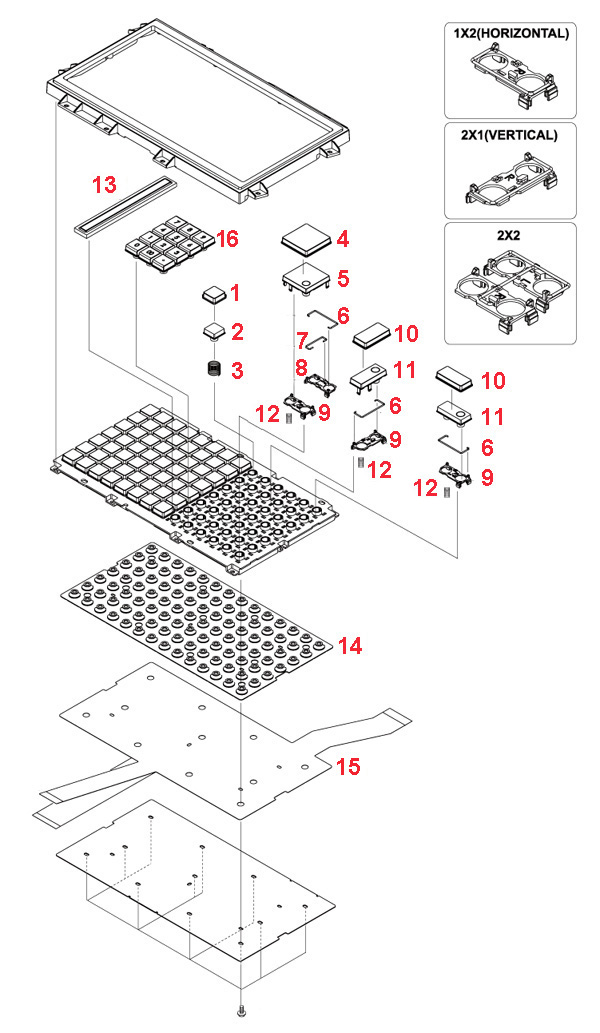

Parts_ER_925_945_Raised_Keyboard
Ref. No. | CRS Item No. | Description | ||
---|---|---|---|---|
1 | 300170 | 1 X 1 KEYCAP - Clear | ||
2 | 300173 | 1 X 1 KEYTOP - BLACK | ||
3 | 300154 | SPRING RETURN N/S | ||
4 | 300172 | 2 X 2 KEYCAP - Clear | ||
5 | 300175 | 2 X 2 KEYTOP - BLACK | ||
6 | 300179 | BAR, BALANCE (LONG) | ||
7 | 300180 | BAR, BALANCE (SHORT) | ||
8 | 300181 | GUIDE HOLDER (L) ER-925/45 | ||
9 | 300176 | GUIDE HOLDER (R) ER-925/45 | ||
10 | 300171 | 1 X 2 KEYCAP - Clear | ||
11 | 300174 | 1 X 2 KEYTOP - BLACK | ||
12 | 300182 | RETURN SPRING SMALL 300/900 | ||
13 | 300169 | 7 X 1 BLANK COVER BLACK | ||
14 | 300178 | CONTACT RUBBER 98 KEY | ||
15 | 549122 | FPC MEMBRANE 98 KEY N/S | ||
16 | 300168 | KEY NUMBER SET N/S BLACK | ||
501532 | Not Illus. - KEYBOARD 21 KEY RAISED ER-900 | |||
537403 | Not Illus. - KIT 63 KEY KEYTOP ER900/SPS300 |
