![](/Files/Images/BlowoutDiagrams/Parts_ER_655II.png)

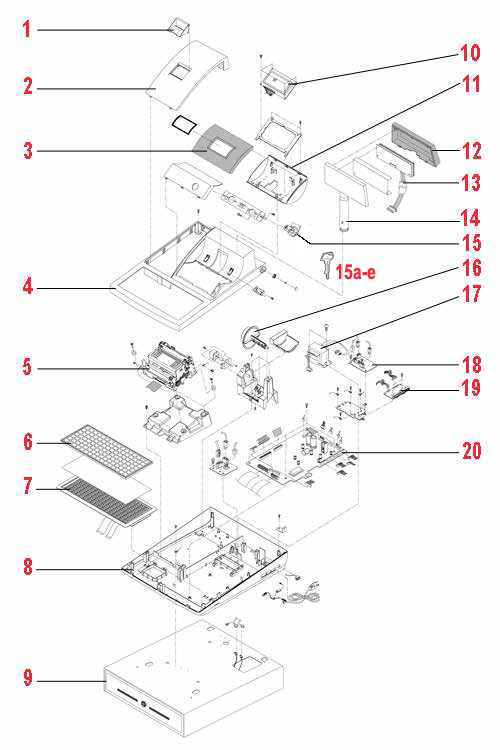

Parts_ER_655II
Ref. No. | CRS Item No. | Description | ||
---|---|---|---|---|
5 | 531000 | PRINTER ASSY - SDM-310 | ||
6 | 350117 | OVERLAY SAMSUNG ER-650/655 | ||
7 | 501310 | KEYBOARD ASSY ER-650/655 | ||
9 | 160257 | DRAWER MODEL 57 ECR IVORY 24V | ||
11 | 101205 | CASE, WINDOW LOWER ER-650 | ||
13 | 501306 | DSPLY TURRET REAR 380M/655II/7 | ||
15 | 300537 | SAMSUNG CONTROL LOCK | ||
15a | 300561 | KEYS (2) C, SAMSUNG N/S (5L11112) | ||
15b | 300562 | KEYS (2) P, SAMSUNG N/S (5L11111) | ||
15c | 300563 | KEYS (2) MODE Z, N/S (5L11110) | ||
15d | 300564 | KEYS (2) VD, SAMSUNG N/S (5L11109) | ||
15e | 300578 | KEYS (2) (REG), N/S (5L11201) | ||
16 | 102020 | TAKE-UP SPOOL ER-350II | ||
17 | 202999 | TRANSFORMER 655/350II/650II/51 | ||
19 | 501308 | SERIAL BOARD ER-650/650R | ||
203023 | 3.6V/.060AH ND BUTTON 3CELL ST |
