![](/Files/Images/BlowoutDiagrams/Parts_ER_650R_Raised_Keyboard.png)

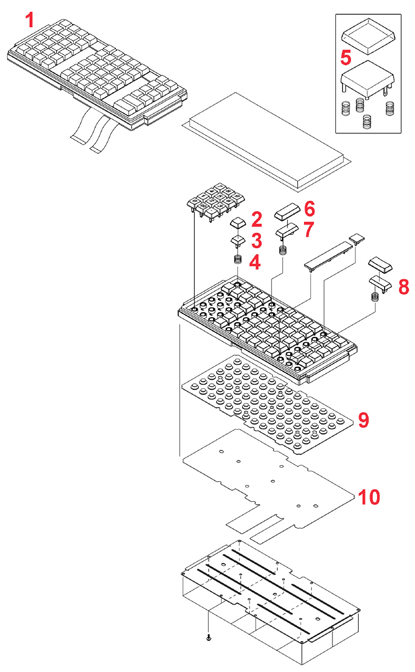

Parts_650R_Raised_keyboard
Ref. No. | CRS Item No. | Description | ||
---|---|---|---|---|
1 | 500989 | KEYBOARD ASSY ER-650R N/S | ||
2 | 300152 | 1 X 1 KEYCAP N/S | ||
3 | 300153 | 1 X 1 KEYTOP N/S | ||
4 | 300154 | SPRING RETURN N/S | ||
5 | 300149 | 2 X 2 KEYCAP/TOP SET N/S | ||
6 | 300155 | 1 X 2 KEYCAP N/S | ||
7 | 300156 | 1 X 2 KEYTOP VERTICAL N/S | ||
8 | 300157 | 1 X 2 KEYTOP HORIZONTAL N/S | ||
10 | 549121 | FPC MEMBRANE 78 KEY N/S | ||
203023 | 3.6V/.060AH ND BUTTON 3CELL ST |
This diagram applies to the following products:
