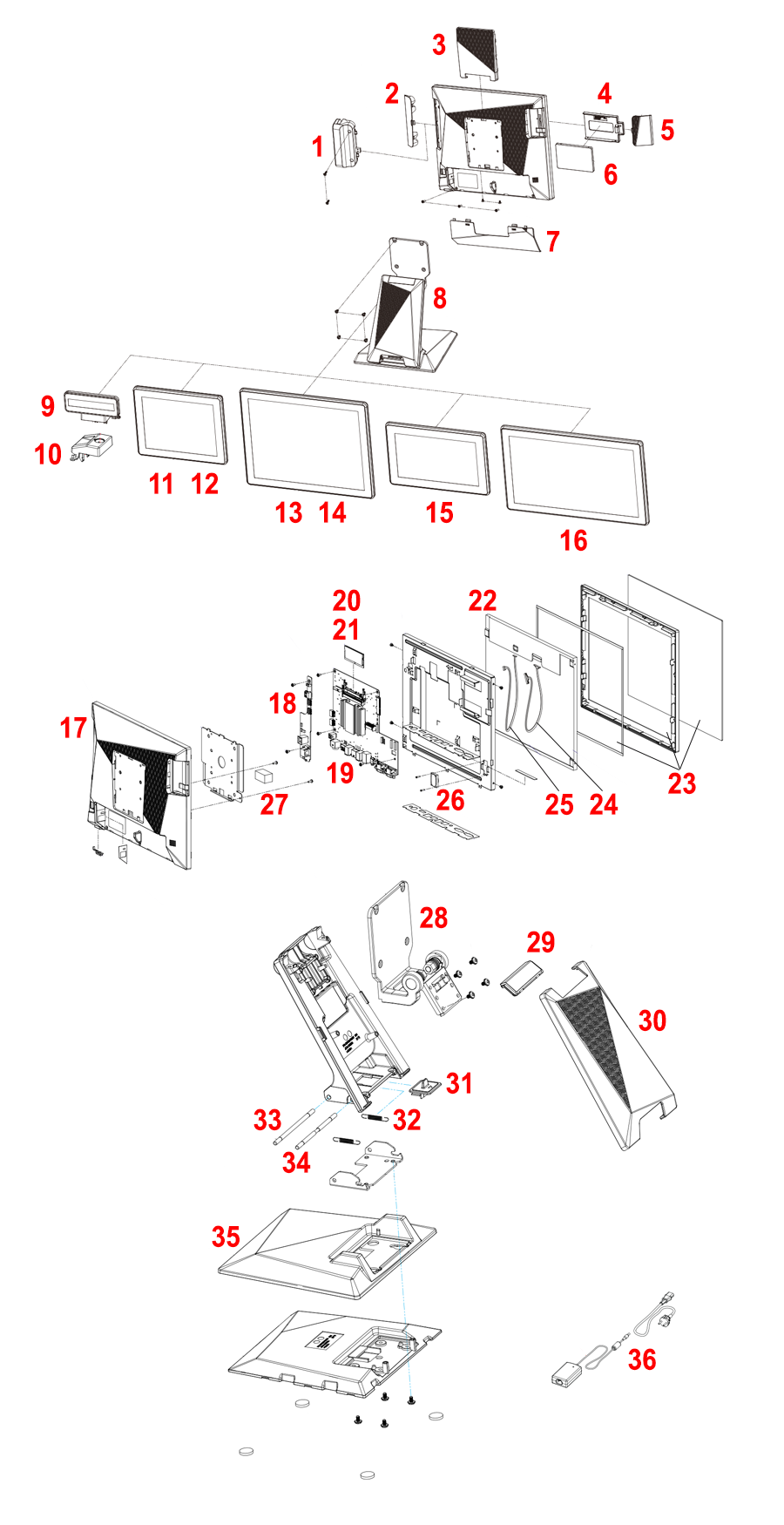

Parts_Sapphire-700
Ref. No. | CRS Item No. | Description | ||
---|---|---|---|---|
1 | 503330 | MSR, Trk 1,2,3 Blk Forza | ||
2 | 101539 | Cover, MCR Saph-700/710 | ||
3 | 101540 | Cover, Hinge Saph-700 | ||
4 | 101536 | Holder, SSD Saph-700 | ||
5 | 101538 | Cover, SSD Saph-700 | ||
6 | 703082 | 2.5 SSD Sata III 64GB** Use 703083 | ||
7 | 101537 | Cover, Wire Saph-700 | ||
8 | 503359 | Stand Assy - Saph-700 | ||
9 | 503347 | Rear 2 x 20 LCD Saph-700 Black | ||
10 | 101550 | Base, 2Line Saph-700 | ||
11 | 503349 | Rear LCD 9.7 Saph-700 w/Touch Black | ||
12 | 503348 | Rear LCD 9.7 Saph-700 Black Non-Touch | ||
13 | 503350 | Rear LCD 15 Saph-700 Black Non-Touch | ||
14 | 503351 | Rear LCD 15 Saph-700 w/Touch Black | ||
15 | 503362 | Rear LCD 10.1 Saph-710 w/Touch | ||
16 | 503363 | Rear LCD 15.6 Saph-710 w/Touch | ||
17 | 101551 | Cover, Rear Display Saph-700 | ||
18 | 503355 | Board, OSD & Drw Saph-700 | ||
19 | 503354 | Motherboard Saph-700 | ||
20 | 720561 | Memory 4gb SODIMM DDR4 | ||
21 | 720572 | Memory 8GB SODIMM DDR4 | ||
22 | 503145 | LCD Panel AUO 15" Titan-150/550/4845/4740/7540/SAP4800/160/560 Forza 15x0 | ||
23 | 503358 | Touch Panel 15in Saph-700 | ||
24 | 503357 | Cable, Backlight 8pin Saph-700 | ||
25 | 503252 | CABLE, LVDS SPT-S1/2XX | ||
26 | 503356 | Speaker Saph-700 | ||
27 | 101541 | Button, Power Saph-700 | ||
28 | 503360 | Main Hinge Assy - Saph-700 | ||
29 | 101543 | Cover, Cap Rear Saph-700 | ||
30 | 101542 | Cover, Rear Saph-700 | ||
31 | 101545 | Lever Release - Saph-700 | ||
32 | 101548 | Spring, Lever Release Saph-700 | ||
33 | 101547 | Hinge, Shaft Rotate - Saph-700 | ||
34 | 101546 | Hinge, Shaft Slide - Saph-700 | ||
35 | 101544 | Cover, Stand Saph-700 | ||
36 | 503112 | Power Supply 60w SPT-47/150/3KSPT-4700/40/4845/3K/T-150 | ||
Not Illus. | 503334 | Cable, Com4 SAP-6600II | ||
Not Illus. | 503310 | Brd, PCT Controller Forza |
This diagram applies to the following products:
- Sam4s Terminal Sapphire-700 - No SSD, No OS (730260)
- Sam4s Terminal Sapphire-700 with No OS, w/SSD (730261)
- Sam4s Terminal Sapphire-700 with Windows 10 IoT 2021 (730255)
- Sam4s Terminal Sapphire-700 with Windows 11 Pro (730258)
- Sam4s Terminal Sapphire-700 for NCC Embedded (730259)
- Sam4s Terminal Sapphire-700 for NCC Windows (730259-WIN-SSD)
