![](/Files/Images/BlowoutDiagrams/Parts_NR-510R_Keyboard.png)

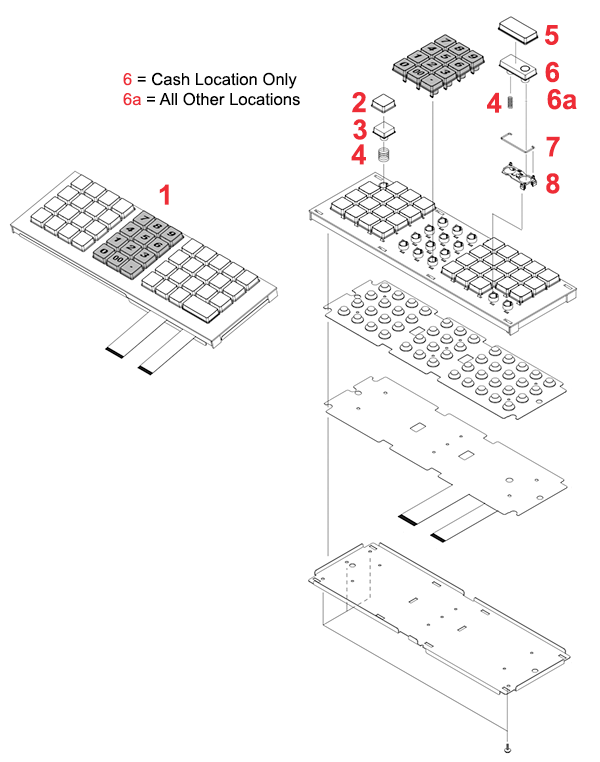

Parts_NR-510R_Raised_Keyboard
Ref. No. | CRS Item No. | Description | ||
---|---|---|---|---|
1 | 501805 | Keyboard 48 Key Raised NR-510R | ||
2 | 300170 | 1 X 1 KEYCAP - Clear | ||
3 | 300173 | 1 X 1 KEYTOP - BLACK | ||
4 | 300154 | SPRING RETURN N/S | ||
5 | 300171 | 1 X 2 KEYCAP - Clear | ||
6 | 300174 | 1 X 2 KEYTOP - BLACK | ||
6a | 300166 | 1 X 2 KEYTOP HORIZONTAL N/S BLACK | ||
7 | 300179 | BAR, BALANCE (LONG) | ||
8 | 300176 | GUIDE HOLDER (R) | ||
Not Illus. | 350155 | Overlay Sam4s NR-510R Universal |
This diagram applies to the following products:
