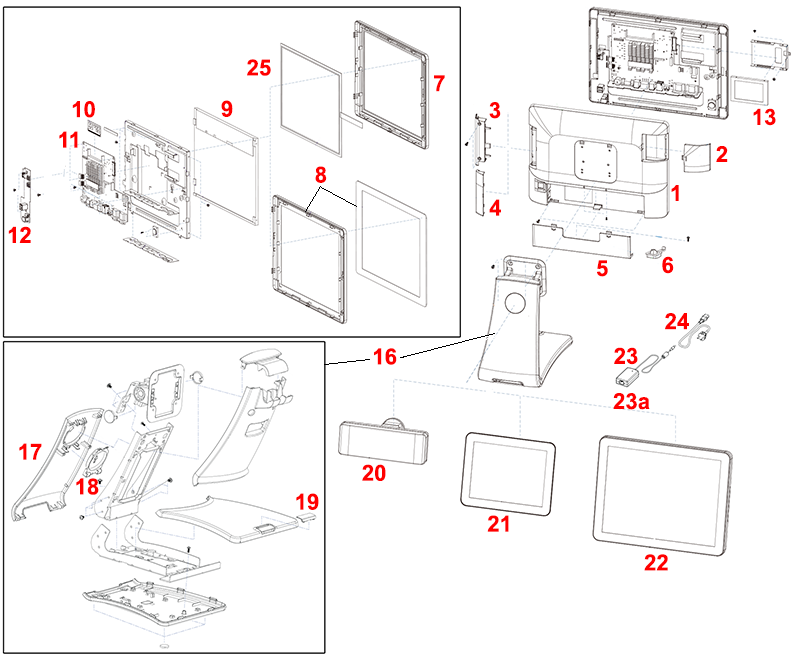

Blowout Diagrams

Parts_SPT-S270J-White

Ref. No.	CRS Item No.	Description
1	503256-WHITE	Cover, Rear Display SPT-S260 - White Cabinet
2	503258-WHITE	Cover, HDD SPT-S260 - White Cabinet
3	503133-NS	MSR, Titan Thin Silver - New Stlye
4	503257-WHITE	Cover, Dummy SPT-S260 - White Cabinet
5	503264-WHITE	Stand Assy - SPT-S260 -White Cabinet
6	503260	BUTTON, POWER - SPT-S1/2XX
7	503255	DISPLAY, FRONT CVR SPT-S1/2X
8	503254	BOARD, PCT CONTROLLER SPT-S
9	503145	LCD Panel AUO Titan-150/550/4845/4740/7540/SAP4800/160/560
10	705072	SODIMM DDR3 4GB RAM
11	503297	Motherboard, Sam4s SPT-S270J
12	503251	Board, OSD SPT-S1/2xx
13	703083	2.5 SSD Sata III 128gb
16	503264-WHITE	Stand Assy - SPT-S260 -White Cabinet
17	503262-WHITE	Cover, Rear SPT-S260 - White Cabinet
18	503263-WHITE	Cover, Dummy Mount SPT-S260 - White Cabinet
19	503261-SAM4S	LOGO, FRONT SAM4S - SPT-S1/2
20	503132-WHITE	Rear Display VFD for SPT-S260 ** White Cabinet **
21	503130-WHITE	Rear Display 9.7" for SPT-S260 ** White Cabinet **
22	503149-WHITE	Rear Display, 15" LCD White - SPT-S260; SPT-S270J; SAP-6600
23	503112	Power Supply 60w SPT-47/150/3KSPT-4700/40/4845/3K/T-150
24	250014	CORD POWER UL 6'
25	503253	Touch Panel SPT-S260
Not Illus.	503298	Board, Ext-Com Sam4s SPT-Sxxx
Not Illus.	503299	Harness, Serial Ext-Com Brd Sam4s SPT-Sxxx
	503296	Cable, Serial RJ45-DB9M SAM4s
Replacement Battery	203070	BATTERY 3V LITHUM CR2032
