![](/Files/Images/BlowoutDiagrams/Parts_GIANT-100.png)

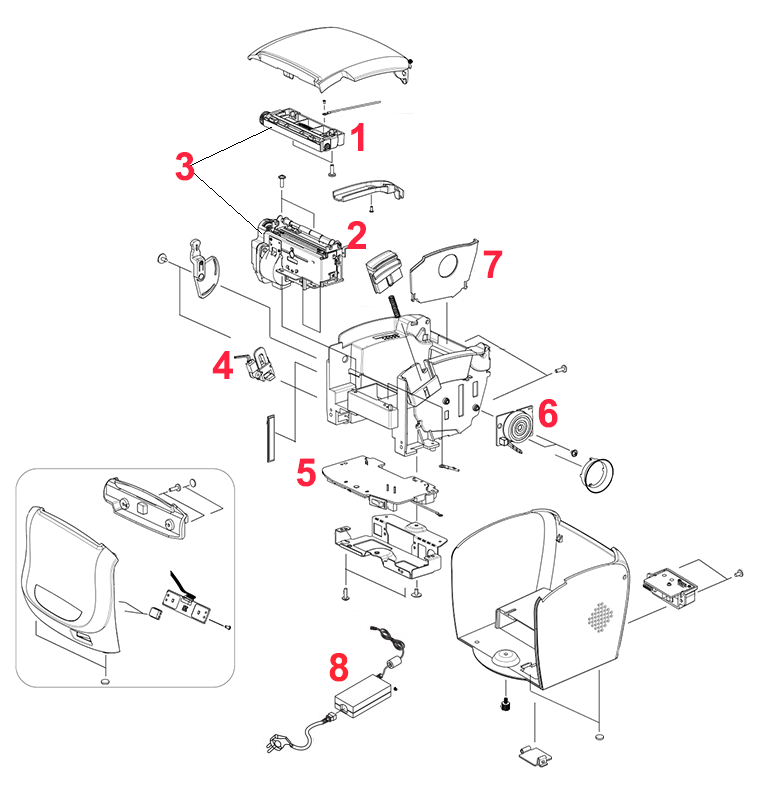

Parts_Giant-100
Ref. No. | CRS Item No. | Description | ||
---|---|---|---|---|
1 | 411100 | Platen Assy Giant-100 | ||
2 | 411101 | Printer Assembly without Platen (Includes Motor, TPH & Auto Cutter) for Giant-100 | ||
3 | 411104 | Printer Assembly with Platen, Motor, TPH & Auto Cutter for Giant-100 | ||
4 | 411102 | Sensor, Near papr End Giant-100 | ||
5 | 411103 | Logic Board - Giant-100 | ||
6 | 102305 | Beeper, Giant-100 | ||
7 | 102304 | Paper Partition, Giant-100 | ||
8 | 501398 | POWER SUPPLY ELLIX 20/30/40 Giant-100 |
This diagram applies to the following products:
