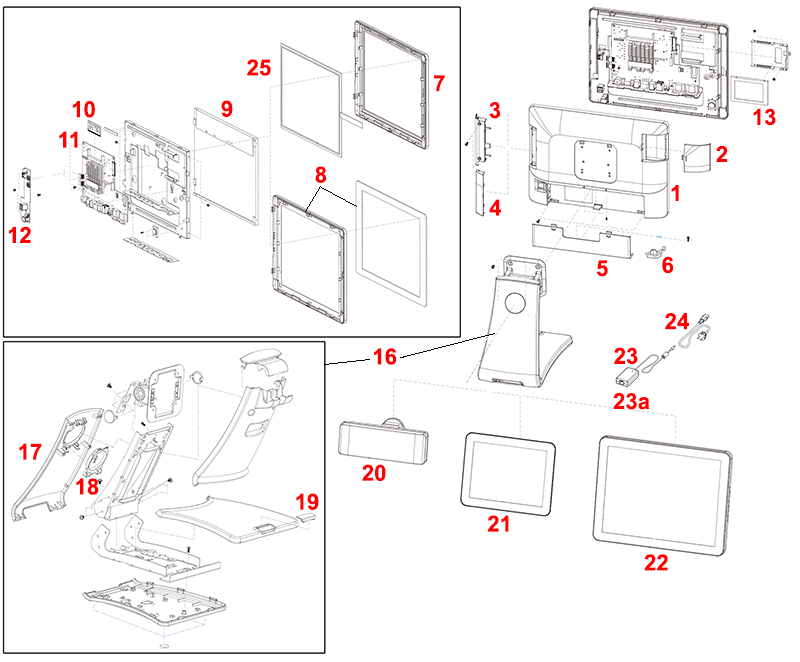

Parts_SPT-S260
| Ref. No. | CRS Item No. | Description | ||
|---|---|---|---|---|
| 1 | 503256 | COVER, REAR DISPLAY SPT-S1/2 - Black Cabinet | ||
| 2 | 503258 | COVER, HDD - SPT-S1/2XX - Black Cabinet | ||
| 3 | 503133-NS | MSR, Titan Thin Silver - New Stlye | ||
| 4 | 503257 | COVER, DUMMY MSR SPT-S1/2 - Black Cabinet | ||
| 5 | 503259 | COVER, WIRE - SPT-S1/2XX -Black Cabinet | ||
| 6 | 503260 | BUTTON, POWER - SPT-S1/2XX | ||
| 7 | 503255 | DISPLAY, FRONT CVR SPT-S1/2X | ||
| 8 | 503254 | BOARD, PCT CONTROLLER SPT-S | ||
| 9 | 503145 | LCD Panel AUO Titan-150/550/4845/4740/7540/SAP4800/160/560 | ||
| 10 | 705072 | SODIMM DDR3 4GB RAM | ||
| 11 | 503250 | Motherboard N3160 SPT-S260 | ||
| 12 | 503251 | Board, OSD SPT-S1/2xx | ||
| 13 | 703083 | 2.5 SSD Sata III 128gb | ||
| 16 | 503264 | STAND ASSY - SPT-S1/2XX | ||
| 17 | 503262 | COVER, REAR SPT-S1/2XX | ||
| 18 | 503263 | COVER, DUMMY MOUNT SPT-S1/2X - Black Cabinet | ||
| 19 | 503261-SAM4S | LOGO, FRONT SAM4S - SPT-S1/2 | ||
| 20 | 503335 | Rear Display, 9mm VFD USB Black - SPT-S260; SPT-S270J; SAP-6600 | ||
| 21 | 503336 | Rear Display, 9.7" LCD Black - SPT-S260; SPT-S270J; SAP-6600 | ||
| 22 | 503337 | Rear Display, 15" LCD Black - SPT-S260; SPT-S270J; SAP-6600 | ||
| 23 | 503112 | Power Supply 60w SPT-47/150/3KSPT-4700/40/4845/3K/T-150 | ||
| 24 | 250014 | CORD POWER UL 6' | ||
| 25 | 503253 | Touch Panel SPT-S260 | ||
| 503296 | Cable, Serial RJ45-DB9M SAM4s | |||
| Replacement Battery | 203070 | BATTERY 3V LITHUM CR2032 | ||
