![](/Files/Images/BlowoutDiagrams/Parts_ER-915_Keyboard.png)

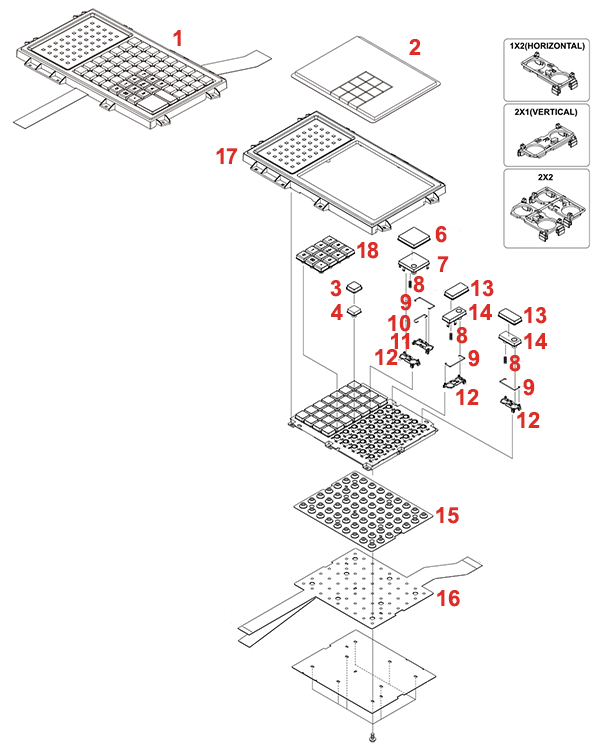

Parts_ER-915_Keyboard
Ref. No. | CRS Item No. | Description | ||
---|---|---|---|---|
1 | 501565 | Keyboard Assy ER-915 | ||
2 | 350154 | Overlay Sam4s ER-915 | ||
3 | 300170 | 1 X 1 KEYCAP - Clear | ||
4 | 300173 | 1 X 1 KEYTOP - BLACK | ||
6 | 300172 | 2 X 2 KEYCAP - Clear | ||
7 | 300175 | 2 X 2 KEYTOP - BLACK | ||
8 | 300182 | RETURN SPRING SMALL 300/900 | ||
9 | 300179 | BAR, BALANCE (LONG) | ||
10 | 300180 | BAR, BALANCE (SHORT) | ||
11 | 300181 | GUIDE HOLDER (L) ER-925/45 | ||
12 | 300176 | GUIDE HOLDER (R) ER-925/45 | ||
13 | 300171 | 1 X 2 KEYCAP - Clear | ||
14 | 300174 | 1 X 2 KEYTOP - BLACK | ||
15 | 300183 | Contact Rubber 63 Key | ||
16 | 549124 | FPC Membrane 63 Key | ||
17 | 501573 | Housing, Keyboard Sam4s ER-915 | ||
18 | 300168 | KEY NUMBER SET N/S BLACK |
This diagram applies to the following products:
