![](/Files/Images/BlowoutDiagrams/Parts_Titan_550_560_3.png)

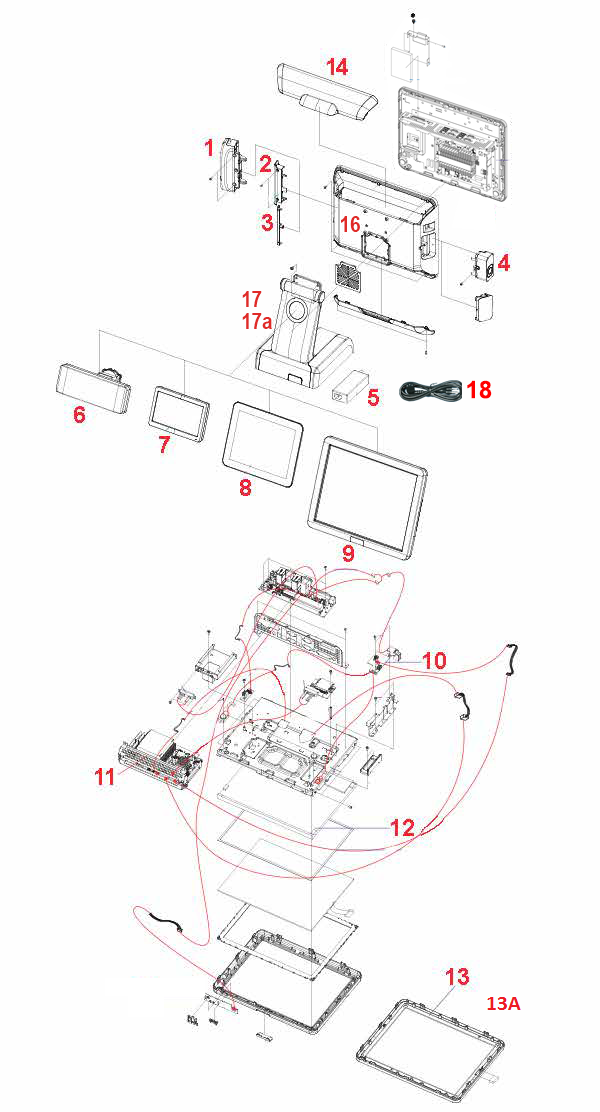

Parts_Titan_550_560
Ref. No. | CRS Item No. | Description | ||
---|---|---|---|---|
1 | 503163 | MCR SPT Black | ||
2 | 503133-NS | MSR, Titan Thin Silver | ||
3 | 503134 | Cover, MSR Black Titan | ||
4 | 503136 | Kit, Fingerprint Reader Titan | ||
5 | 503148 | Power Supply 150w Titan-550 | ||
6 | 503132 | Rear VFD Titan-150/550 | ||
8 | 503130 | Rear Display 9.7 Titan-150/550 | ||
9 | 503128 | Rear Display 15 Titan-550 | ||
10 | 503144 | Board, AMT Touch Titan-550 | ||
11 | 503146 | Logic Board Titan-550 | ||
12 | 503145 | LCD Panel AUO Titan-150/550 | ||
13A | 503225 | Touch Panel (PCT) TITAN-560 | ||
14 | 503226 | Cover, I/O Titan-1/5xx N/S | ||
15 | 565156 | Cable, Titan Serial Extension | ||
17 | 503182 | Cover, Cable Titan - No Logo | ||
17A | 503189 | Cover, Cable Titan - SAM4S | ||
18 | 503142 | Cord, Power Titan, | ||
503137 | Cover, FPR Black Titan | |||
503142 | Cord, Power Titan, | |||
503143 | Board, OSD Titan-150/550 | |||
503147 | Board, I/O Titan-550 | |||
503148 | Power Supply 150w Titan-550 | |||
503188 | Bracket, HDD Titan-150/550 | |||
503211 | Holder Dual Titan | |||
503219 | Deco for Stand - TitanSilver Ring | |||
503230 | Base Assembly Titan-1xx/5xx ** No Power Supply ** | |||
503235 | Board Sub PCB PCT Touch Titan560 | |||
503238 | Button, Power Titan-150/550 | |||
503240 | Cable, SATA Titan 550/560 | |||
503241 | Harness, LVDS 450mm,30P Titan5 | |||
503244 | Cable, PCT Interface Titan-560 | |||
600925 | Thumb Screw Titan Rear Cover | |||
600927 | Screw for Titan HDD Bracket | |||
503296 | Cable, Serial RJ45-DB9M SAM4s |
This diagram applies to the following products:
- Terminal Titan-550 POSReady09 (730082)
- Sam4s Terminal Titan-550 POSReady7 (730083)
- Terminal Titan-550 POSReady7 (730083-SHOW)
- Terminal Titan-550 Win7 (730084)
- Terminal Titan-550 Win7 (730084-SHOW)
- Terminal Titan-550 Win 8.1 Pro (730085)
- Terminal Titan-550 Win 8.1 Ind (730086)
- Terminal Titan-550 (730087)
- Term Titan-550 No OS/No HDD (730087-SHOW)
- Terminal, Titan-560 (730147-Parent)
- Sam4s Terminal Titan-560 Windows 10 Pro with SSD (730148)
