Parts_Titan_150_160
| Ref. No. | CRS Item No. | Description | ||
|---|---|---|---|---|
| 1 | 503163 | MCR Black SPT-4845/SAP-48xx | ||
| 2 | 503133-NS | MSR, Titan Thin Silver | ||
| 3 | 503134 | Cover, MSR Black Titan | ||
| 4 | 503136 | Kit, Fingerprint Reader Titan | ||
| 5 | 503112 | Power Supply 60W | ||
| 5A | 503082 | Power Supply 75w | ||
| 6 | 503132 | Rear VFD Titan-150/550 | ||
| 8 | 503130 | Rear Display 9.7 Titan-150/550 | ||
| 9 | 503129 | Rear Display 15 w/PS Titan-150 | ||
| 10 | 503178 | Board, Parallel Drwr Titan-150 | ||
| 11 | 503179 | Logic Board Titan-1504740/4845/7540/160/4846/7640 | ||
| 12 | 503177 | Board, Touch AMT Titan-150 | ||
| 13 | 503145 | LCD Panel AUO Titan-150/550 | ||
| 14A | 503225 | Touch Panel (PCT) TITAN-160 | ||
| 15 | 503226 | Cover, I/O Titan | ||
| 17 | 503224 | Cabinet Rear Titan-1/5 Plastic | ||
| 18 | 503182 | Cable Cover, Titan- No Logo | ||
| 18A | 503189 | Cable Cover, Titan - SAM4s Logo | ||
| 19 | 503142 | Cord, Power Titan, | ||
| 565156 | Cable, Titan Serial Extension | |||
| 503137 | Cover, FPR Black Titan | |||
| 503143 | Board, OSD Titan-150/550 | |||
| 503188 | Bracket, HDD Titan-150/550 | |||
| 503211 | Holder Dual Titan | |||
| 503230 | Base Assembly Titan-1xx/5xx ** No Power Supply ** | |||
| 503236 | Board PBA Sub PCT Touch Titan160 | |||
| 503238 | Button, Power Titan-150/550 | |||
| 503239 | Cable, SATA Titan-150/160 | |||
| 503242 | Cover, Bottom Titan-1x0 | |||
| 600925 | Thumb Screw Titan Rear Cover | |||
| 600927 | Screw for Titan HDD Bracket | |||
| Replacement Battery | 203070 | BATTERY 3V LITHUM CR2032 | ||

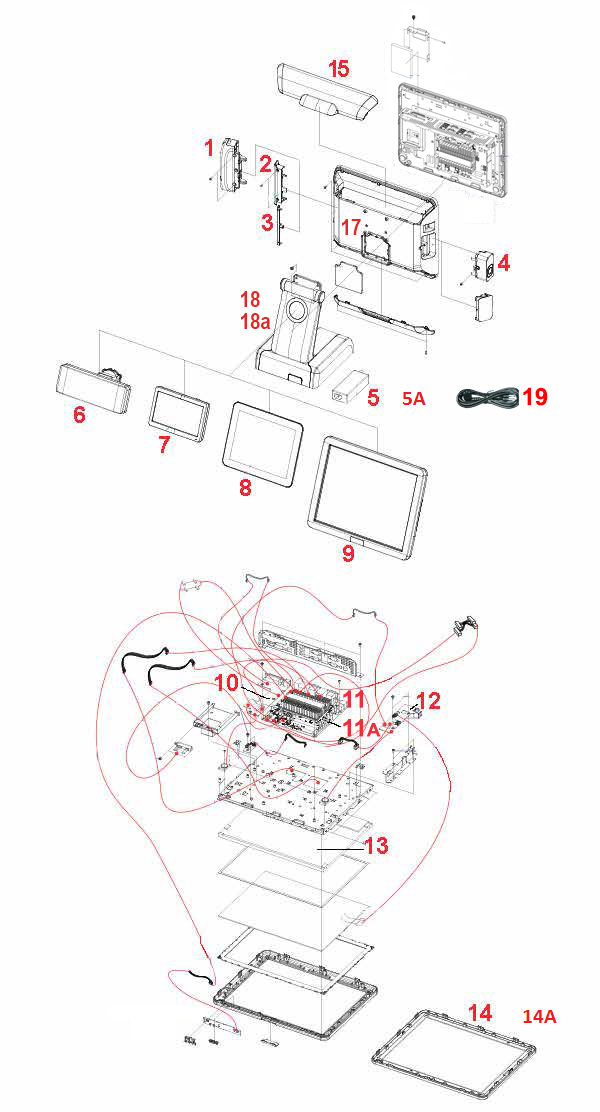

This diagram applies to the following products:
- Terminal Titan-150 POSReady 7 (730108)
- Terminal Titan-150 POSReady7 (730108-SHOW)
- Terminal Titan-150 Win 7 (730109)
- Terminal Titan-150 Win 8.1 Ind (730110)
- Terminal Titan-150 Win 8.1 Pro (730111)
- Terminal Titan-150 (730112)
- Terminal Titan-150 NCC Reflect (730113-SHOW)
- Term Titan-150 NCC Ref Win (730114-SHOW)
- Terminal Titan-160 POSReady09 (730133)
- Terminal Titan-160 POSReady7 (730134-SHOW)
- Term Titan-160 No OS/No Hdd (730141-SHOW)
- Sam4s Titan-160 Integrated Touch Terminal Series (730141-Parent)
- Sam4s Titan-160 Integrated Touch Terminal Series - for NCC Reflection POS (Embedded) (730140-Parent)
- Sam4s Titan-160 Integrated Touch Terminal Series - for NCC Reflection POS (Windows) (730140-WIN-SSD-Parent)
- Sam4s Terminal Titan-160 POSReady 7 (730134)
- Sam4s Terminal Titan-160 POSReady 7 with SSD (730164)
