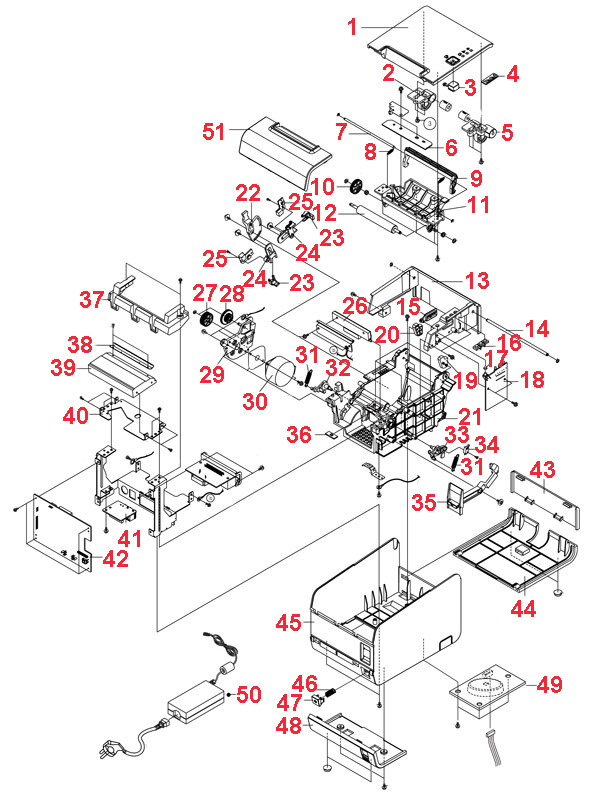

Parts_Ellix_20
Ref. No. | CRS Item No. | Description | ||
---|---|---|---|---|
26 | 501393 | PRINT HEAD THERMAL ELLIX 20 | ||
39 | 501395 | CUTTER UNIT ELLIX 20 | ||
50 | 501398 | POWER SUPPLY ELLIX 20/30/40 Giant-100 | ||
501487 | PRINT HEAD THERMAL ELLIX 20II | |||
501522 | IF BRD SERIAL ELLIX 20IIV | |||
501525 | IF BOARD ETHER-II ELLIX 20IIV |
This diagram applies to the following products:
- SAM4S ELLIX 20 SERIAL IVORY** CLOSEOUT PRICE ** (131000)
- SAM4S ELLIX 20 ETHERNET IVORY (131000-E)
- SAM4S ELLIX 20 PARALLEL IVORY** CLOSEOUT PRICE ** (131001)
- SAM4S ELLIX 20 SERIAL GRAY** USE 131018 ** (131002)
- SAM4S ELLIX 20 ETHERNET GRAY** USE 131018-E ** (131002-E)
- Ellix 20 Serial Grey (131002-SHOW)
- SAM4S ELLIX 20 PARALLEL BLACK** USE 131019 ** (131003)
- SAM4S ELLIX 20 USB GRAY** USE 131020 ** (131015)
- SAM4S ELLIX 20 USB IVORY (131016)
- SAM4S ELLIX 20 SERIAL BLACK** USE 131026 ** (131018)
- SAM4S ELLIX 20II ETHERNET GRAY (131018-E)
- Ellix 20II Serial Black (131018-SHOW)
- SAM4S ELLIX 20II PARALLEL BLK** USE 131027 ** (131019)
- SAM4S ELLIX 20II USB GRAY (131020)
- SAM4S ELLIX 20II USB IVORY (131021)
- ELLIX 20II V IVORY SERIAL (131024)
- ELLIX 20II V IVORY ETHERNET (131024-E)
- ELLIX 20II V IVORY USB (131024-USB)
- ELLIX 20II V IVORY PARALLEL (131025)
- PRINTER, ELLIX 20 (131026)
- ELLIX 20II V BLACK ETHERNET** Limited Availability ** (131026-E)
- Ellix 20II V Black Serial (131026-SHOW)
- ELLIX 20II V BLACK USB** Limited Availability ** (131026-USB)
- ELLIX 20II V BLACK PARALLEL (131027)
