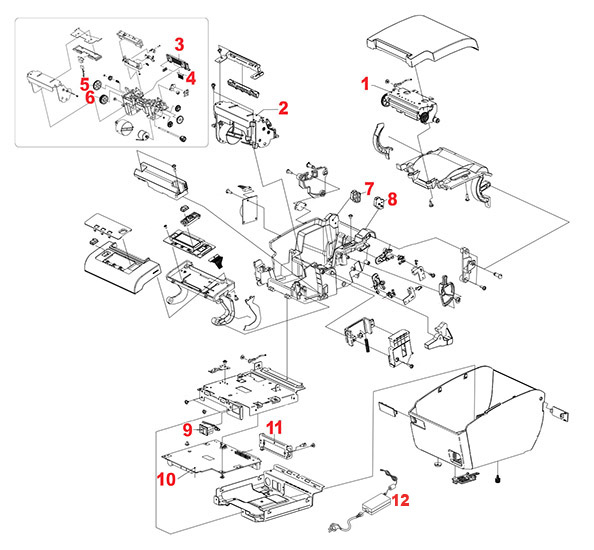

Parts_Ellix_40
Ref. No. | CRS Item No. | Description | ||
---|---|---|---|---|
1 | 501543 | ASSY PRINT ROLLER ELLIX 30 | ||
2 | 501547 | PRINTER ASSY ELLIX 40 | ||
3 | 501542 | PRINT HEAD ELLIX 30/40 | ||
4 | 465071 | FFC PRINTER SIGNAL STM-210 | ||
9 | 101474 | POWER SWITCH ER-900/SPS-300 | ||
10 | 501545 | MAIN BOARD ELLIX 40 | ||
11 | 501371 | Interface Bd Ser Ellix 20/40 | ||
11 | 501399 | Interface USB-II Ellix 20/40 | ||
11 | 501529 | IF Brd Ether-II Ellix 40 | ||
12 | 501398 | Power Supply - Ellix 20/30/40 | ||
102297 | PAPER PARTITION - 58MM, ELLIX 30/40 | |||
102301 | Cover, Open Ellix 30/40 Black | |||
204251 | Fuse 4 amp Ellix 30/40 | |||
501528 | INTERFACE COVER PLATE ELLIX 40 |
