![](/Files/Images/BlowoutDiagrams/ellix30.png)

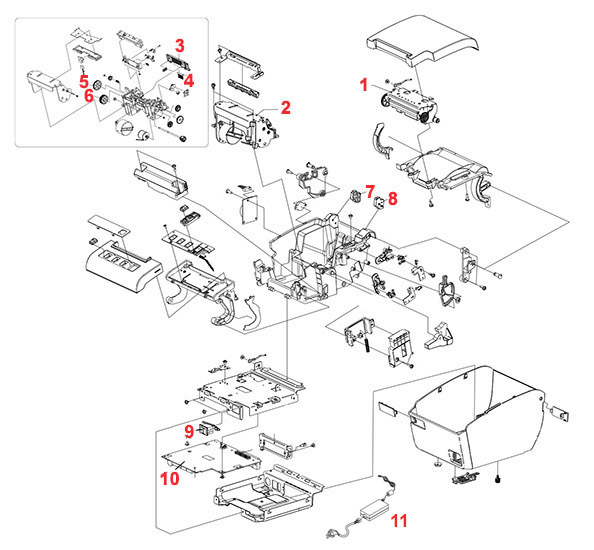

Parts_Ellix_30
Ref. No. | CRS Item No. | Description | ||
---|---|---|---|---|
1 | 501543 | ASSY PRINT ROLLER ELLIX 30 | ||
2 | 501544 | PRINTER ASSY ELLIX 30 | ||
3 | 501542 | PRINT HEAD ELLIX 30/40 | ||
4 | 465071 | FFC PRINTER SIGNAL STM-210 | ||
9 | 101474 | POWER SWITCH ER-900/SPS-300 | ||
10 | 501540 | MAIN BOARD ELLIX 30 SERIAL | ||
10 | 501541 | MAIN BRD ELLIX 30 PARALLEL O/S | ||
11 | 501398 | Power Supply - Ellix 20/30/40 | ||
102297 | PAPER PARTITION - 58MM, ELLIX 30/40 | |||
102301 | Cover, Open Ellix 30/40 Black | |||
102302 | Case, Lower Ellix 30/40 Black | |||
204251 | Fuse 4 amp Ellix 30/40 | |||
501548 | Main Brd Ellix 30 Parallel N/S |
