![](/Files/Images/BlowoutDiagrams/Parts_SPT_7000_7500_7540_7640_2.png)

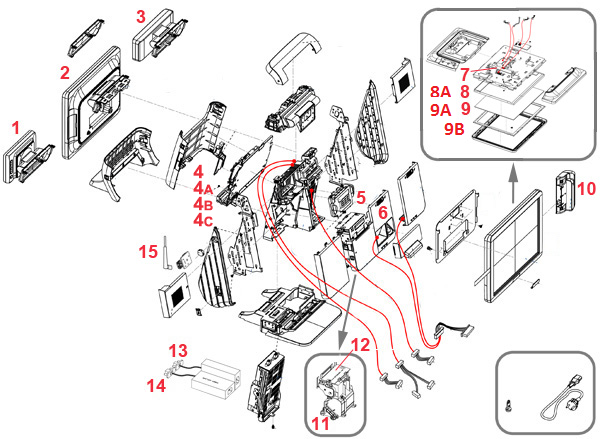

Parts_SPT_7000_7500_7540_7640_7650
Ref. No. | CRS Item No. | Description | ||
---|---|---|---|---|
1 | 503071 | REAR LCD 7 inch | ||
2 | 503072 | REAR LCD 15 inch | ||
3 | 503070 | REAR VFD 2X20 | ||
4 | 503083 | Logic Board SPT-7000 / SPT-7500 | ||
4A | 503179 | Logic Board Titan-150/4740/4845/7540/160/4846/7640 | ||
4B | 503093 | Board, Parallel SPT-7000 | ||
4C | 503282 | Logic Board N3160 for Titan-360 SPT-4856 SPT-7650 | ||
5 | 703081 | 2.5 HDD 320GB SATA 5400RPM | ||
7 | 503096 | Inverter Module SPT-7000 | ||
8A | 503145 | LCD Panel AUO also need cable 503272 | ||
9 | 503085 | Touch Panel – SPT-7000 (Resistive) | ||
9B | 503225 | Touch Panel (PCT) SPT-7640 | ||
10 | 503089 | MCR | ||
12 | 503095 | Printer Board | ||
13 | 503092 | Power Supply 24V/2.5A | ||
14 | 503098 | Power Supply 80W | ||
15 | 503073 | SPT WiFi USB Adaptor | ||
Not pictured | 503272 | Harness, Inverter LED SPT-47xx | ||
503074 | SLOT, CFAST SPT-7000 | |||
503076 | CARD, DVR PCI W/O DVR SPT-7000 | |||
503094 | Board, AMT Touch SPT-7000 | |||
503111 | Front Display Assy SPT-7500 | |||
503115 | Cover, SPT Finger Print Reader SPT-4500,4700,7000,7500 | |||
503116 | Modular Adaptor SPT-7000 | |||
503245 | Cable, PCT Interface SPT-7640 | |||
501542 | PRINT HEAD ELLIX 30/40 | |||
503296 | Cable, Serial RJ45-DB9M SAM4 | |||
703083 | 2.5 SSD SATA III 128GB | |||
Replacement Battery | 203070 | BATTERY 3V LITHUM CR2032 |
This diagram applies to the following products:
- Terminal SPT-7500 NCC Reflect (730045)
- Terminal SPT-7640 No HDD/No OS (730132-SHOW)
- Sam4s SPT-7650 Integrated Touch Terminal Series (730227-Parent)
- Terminal, SPT-7640 (730132-Parent)
- Terminal SPT-7540 NCC Ref Win (730105-SHOW)
- Terminal SPT-7540 NCC Ref Win (730105)
- Term SPT-7540 NCC Reflect (730104-SHOW)
- Terminal SPT-7540 (730103)
- Terminal SPT-7540 Win 8.1 Pro (730102)
- Terminal SPT-7540 Win 8.1 Ind (730101-SHOW)
- Terminal SPT-7540 Win 8.1 Ind (730101)
- Terminal SPT-7540 Win 7 (730100)
- Terminal SPT-7540 POSReady7 (730099-SHOW)
- Terminal SPT-7540 POSReady 7 (730099)
- Term SPT-7040 No O/S No HDD (730094)
- Terminal SPT-7040 Win 8.1 Pro (730093)
- Terminal SPT-7040 Win 8.1 Ind (730092)
- Terminal SPT-7040 Win 7 (730091)
- Terminal SPT-7040 POSReady7 (730090)
- Terminal SPT-7000 NCC Reflect (730044-SHOW)
- Terminal SPT-7000 NCC Reflect (730044)
- TERMINAL SPT-7500 NCC REF WIN (730043)
- TERMINAL SPT-7000 NCC REF WIN (730042)
- Terminal SPT-7500 (730041)
- Terminal SPT-7500 Win Pro 8.164 Bit (730040-64BIT)
- TERMINAL SPT-7500 Win Pro 8.132 Bit (730040-32BIT)
- TERMINAL SPT-7500 WIN7 (730039)
- TERMINAL SPT-7500 POSREADY7 (730038)
- Terminal SPT-7000 (730035)
- TERMINAL SPT-7000 WIN 8.1 (730034)
- Terminal SPT-7000 Win7 (730033-SHOW)
- TERMINAL SPT-7000 WIN7 (730033)
- Terminal SPT-7000 POSReady7 (730032-SHOW)
- Terminal SPT-7000 POSReady7 (730032-A)
- TERMINAL SPT-7000 POSREADY7 (730032)
