Sam4s Terminal Forza 1850 Windows 10 IoT Value2016 - Black Cabinet

Discontinued

Powerful and Flexible POS System

Item #: 732041

Parts only

Sam4s Terminal Forza 1850 Windows 10 IoT Value2016   Black Cabinet
  • Sam4s Terminal Forza 1850 Windows 10 IoT Value2016   Black Cabinet
  • Sam4s Terminal Forza 1850 Windows 10 IoT Value2016   Black Cabinet
  • Sam4s Terminal Forza 1850 Windows 10 IoT Value2016   Black Cabinet
  • Sam4s Terminal Forza 1850 Windows 10 IoT Value2016   Black Cabinet
  • Sam4s Terminal Forza 1850 Windows 10 IoT Value2016   Black Cabinet

Options & Accessories

Product Number Description
Loading...

Product information

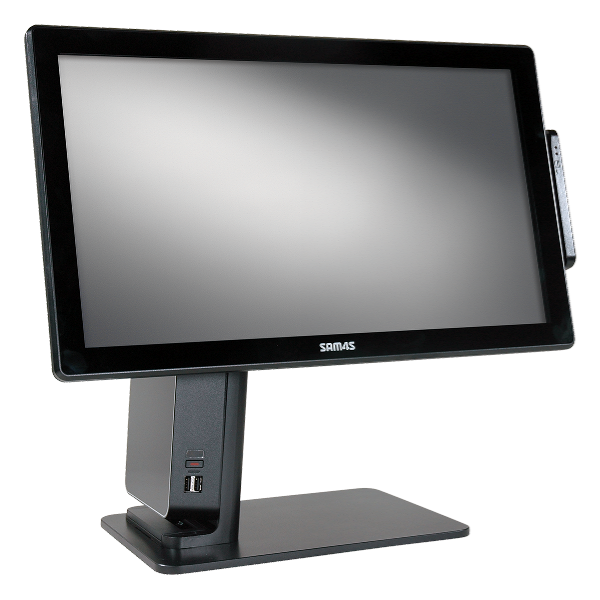

The largest terminal in the powerful and flexible FORZA POS system line is a highly configurable solution that allows you to design the perfect workstation. Unleash productivity potential with the massive workspace available on the 18.5" touchscreen. Choose from a variety of hardware component choices that provide optimum performance and reliability advantages to best fit your needs in harsh retail and foodservice environments. Add the optional vertical mount to rotate the display and add the SAM4s GCUBE thermal receipt printer to create a sleek looking, powerful kiosk terminal.


• 7th Generation Core™ i5 7200U Processor
• Solid State Drive and Projected Capacitive Touch (PCT) Improve Performance and Reliability
• 18.5" Screen / 16:9 Aspect Ratio
• Vivid LED Backlight
• Variety of Available Integrated Customer Display and MCR Options
• Designed For Superior Serviceability and Easy Installation



Product Brochure

Specifications

Processor

Core i5 7200U

Cores / Threads-

Dual Core / 4 Threads

Cache Memory:

3MB

Display LCD: True Flat 15" LCD with LED Backlighting
Resolution: 1366 x 768 / Aspect Ratio 16:9
Brightness: Adjustable Up to 250 cd/m2
Integrated Speakers: Integrated 2 Watt Speaker
Chipset (PCH): System on Chip
Touch Panel: Projected Capacitive Multi-Touch Panel (PCT)
MCR: Integrated USB Interface Triple Track MCR w/Optional Encryption
Mass Storage Device: 128GB 2.5" Solid State Drive
RAM Memory 8GB SODIMM DDR4 (2 Slots) Expandable To 16GB
RAID Support: Yes
Video Memory: Shared System Memeory
Serial Ports

COM1 / COM2 / COM3 = DB9M With Pin 9 (0V/+5V/+12V)
COM4 = RJ45 Pin 1 (0V+5V/+12V)
Voltage Selectable By BIOS

USB Ports Two V2.0 (Front) Four V3.0 (Rear)
Cash Drawer Port: RJ12, 12V or 24V Selectable By BIOS –
Maximum 2 Drawers – Supports Drawer Compulsion
HDMI Port: One (4096 x 2304 @ 24Hz)
LAN Port: RJ45 10/100/1000 Base-T (Giga LAN) RealTek RTL8111G
Video Port: One Display Port for Second LCD
(Maximum Resolution 4096 x 2304 @ 60Hz)
Audio Port: One Line-out
Power Supply: 72W, 12V/6A External Power Adaptor 100-240V 50-60Hz
Current / Power Usage: 0.30A / 36W without Rear LCD
0.37A / 44.5W with Rear LCD
Environment: 32° F to 95° F / 0% to 90% RH Non-Condensing
Compatible O/S: Win 10 IoT Value 2016
Win 10 IoT Value 2019
Win 10 Pro
Dimen. / Weight :

Base: 11-3/8"W x 8-1/2"D x 12"H
Unit: 19"W x 8-1/2"D x 16-5/16"H / 15.4 lbs.
Shipping Carton: 19"L x 11"W x 20"H / 16 lbs.

Safety and EMI: KC, CE, FCC, CB, NRTL, RoHS
