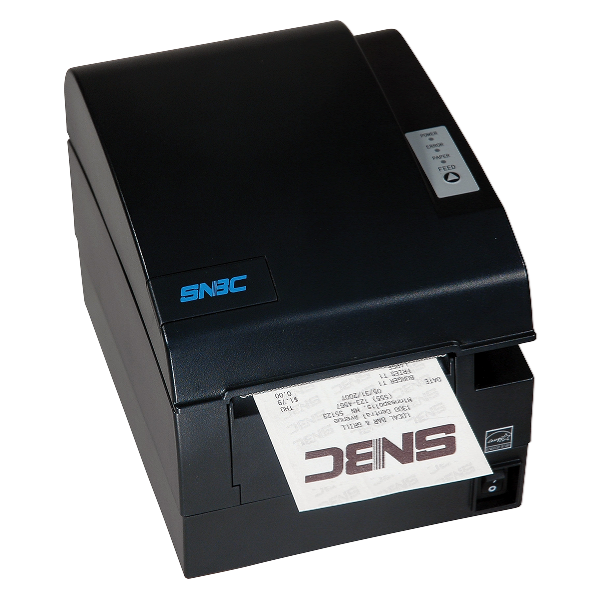

SNBC Printer BTP-R580II Black USB+Parallel
Professional Spill-Proof Design and Front Paper Exit
Item #: 132076
Product information
The SNBC BTP-R580II thermal receipt printer is ideal for harsh hospitality, QSR and retail environments. The front paper exit allows installation in tight spaces and use as a low-cost kiosk printer.
• Energy Star Certifed – Superior Efficiency Reduces Energy Costs and Reduces Carbon Footprint
• Print Speed Up to 230mm per Second
• Built-In Power Supply
• Gray Scale and Two Color Print Capable
• Dual Interface Standard – USB Interface is on the Main Board
• Serial, Parallel, USB, Ethernet and Wireless WiFi Interface Options
• Stores and Prints Logo Images
• Contains Everything Necessary in the Carton– Including Communication Cables
Specifications
| Max Print Speed - Mono: | 230mm per Second |
| Max Print Speed - Gray Scale: | 150mm per Second |
| Max Print Speed - Two-Color: | 120mm per Second |
| Printing Method: | Direct Thermal |
| Resolution: | 203 DPI x 203 DPI |
|
Characters Per Line - Font A: |
42 (80mm) / 37 (58mm) 56 (80mm) / 49 (58mm) |
| Characters Size - Font A: Font B: |
12 x 24 9 x 17 |
| Paper Roll Type - Width: Maximum Diameter: Paper Thickness: |
54.5mm ~ 82.5mm 100mm 0.06mm ~ 0.145mm |
| Auto Paper Cutting Method: | Auto-Cutter with Selectable Full or Partial Cut |
| Reliability - MTBF: MCBF: Printhead Life: Cutter Life: |
360,000 Hours 70,000,000 Lines Single Color >_ 150 KM / Two Color >_ 75 KM 2,000,000 Cuts |
| Character Set - Alphanumeric: International: Graphic: |
95 13 128 x 56 Page |
| Bar Code - 1D: 2D: |
UPC-A / UPC-E / EAN8 / EAN13 / Code39 / Code93 / CODE128 / CODABAR / ITF PDF417 / QR Code / MaxiCode |
| Interpreter: | ESC/POS |
| Interface: | USB+Serial / USB+Parallel / USB+Ethernet / USB+Wireless WiFi / USB Only |
| Drivers - 32 bit: 32 and 64 bit: Other: Software Development Kit: |
POSReady 2009 / 2000 Server / 2000 Prof. / XP Home Win 8 / Win 7 / Server 2008 / Server 2003 / XP Prof. / Vista Linux / OPOS / MAC Support / BYJavaPOS Windows / BYJavaPOS Linux iOS / Android |
| Drawer Port: | Up to 2 Drawers (+24VDC) / Drawer Compulsion |
| Data Buffer - Rec. Buffer RAM: RAM Bitmap: Flash Bitmap: |
64KB 128KB 512KB |
| Power Supply: | AC 100 ~ 240 V, 50/60 Hz |
| Current/Power Usage: | 2.3A / 60W |
| Operating Temperature: | 40° ~ 114°F (5° ~ 45°C) |
| Operating Humidity: | 20% ~ 90% RH (Non-Condensing) |
| Dimensions | 6-1/8"W x 6-5/16"H x 8-1/16"D |
| Shipping Weight: | 7 lbs. (Each Unit) |
| Safety and EMI: | FCC / RoHS |
| Windows Driver: | Windows driver - win 10 compatible |
| Printer Utility: | Printer Utility |
