Product information

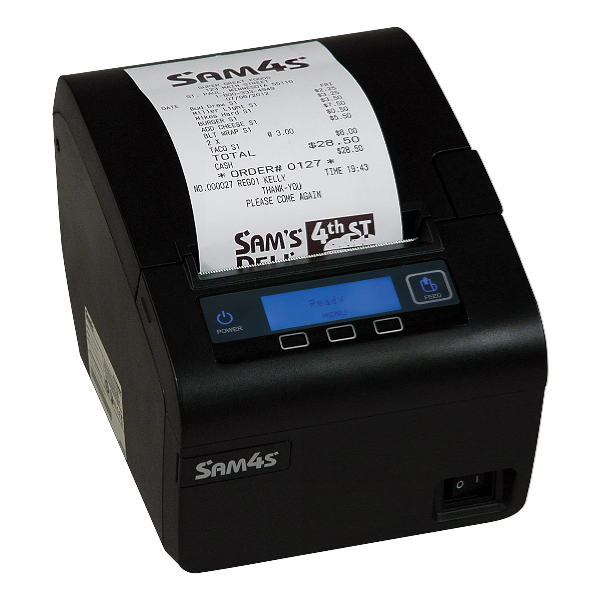

Easy to set up – easier to use and support! The innovative Ellix 40 from SAM4s provides a unique LCD display that displays errors, operator messages, and guides you through setup and option selections.
• Energy Star Certifi ed – Superior Effi ciency Reduces Energy Costs and Carbon Footprint
• Dual Interface – USB Interface is Standard
• 270mm per Second Print Speed
• Drop and Print Paper Loading
• Prints Mono or Two-Color
• Stores/Prints User Defi ned Graphic Logos, Coupons or Advertising Messages
• Prints Watermarks
• Anti-Jam Technology
Specifications
| Max Print Speed- Mono 80mm: Mono 58mm: Two-Color: |
270mm / Second 150mm / Second 100mm / Second |
| Printing Method: | Direct Thermal |
| Resolution: | 180DPI |
|
Characters Per Line - Font A: |
42 (80mm) / 30 (58mm) 56 (80mm) / 40 (58mm) |
| Characters Size- Font A: Font B: |
12 x 24 9 x 17 |
| Paper Type - Width: Maximum Diameter: Paper Thickness: |
80mm / 58mm 83mm 0.06mm ~ 0.08mm |
| Auto Paper Cutting Method: | Guillotine Style, Jam-Free – Full or Partial Cut |
| Reliability - MCBF: Printhead Life: Cutter Life: |
70,000,000 Lines >_ 150 KM 1,500,000 Cuts |
| Character Set - Alphanumeric: International: Graphic: |
95 37 128 x 11 Page: Code Pages for All Popular Languages |
| Bar Code: | UPC-A / UPC-E / EAN8 / EAN13 / Code39 / Code93 / CODE128 / ITF / CODABAR / PDF417 / QR Code |
| Interpreter: | ESC/POSTM / Star |
| Interface: | USB+Serial / USB+Parallel / USB+Ethernet / USB (B) Only |
| Drivers: | Windows® / OPOS |
| Drawer Port: | Up to 2 Drawers (+24VDC) / Drawer Compulsion |
| Memory - Program Memory: Data Memory: Data Buffer: |
4 MB 8 MB 64 KB |
| Power Supply: | AC 100 ~ 240 V, 50/60 Hz Adapter Included |
| Current/Power Usage: | 2.5A / 60W |
| Operating Temperature: | 40° ~ 114°F (5° ~ 45°C) |
| Operating Humidity: | 10% ~ 90% RH (Non-Condensing) |
| Dimensions: | 5-5/8"W x 5-3/8"H x 7-5/8"D |
| Shipping Weight: | 7 lbs. |
| Safety and EMI: | FCC Class A / CE / RoHS |
| Windows Driver Installer | Sam4s Driver Installer |
| Printer Utility: | Current Printer Utility |
